TwinTower® automated storage system

The TwinTower® automated storage system, like its single-tower version, the MonoTower®, is the ideal solution for storing small quantities of sheets. Situated close to the sheet metal working machines (laser cutting or punching machines), it optimizes and speeds up the material flow and makes efficient use of the available space. The TwinTower® for storing metal sheets consists of two storage columns, between which an elevator transports shelves. The loading and unloading of the sheets onto the shelves take place, depending on the version, at a fixed or movable station.

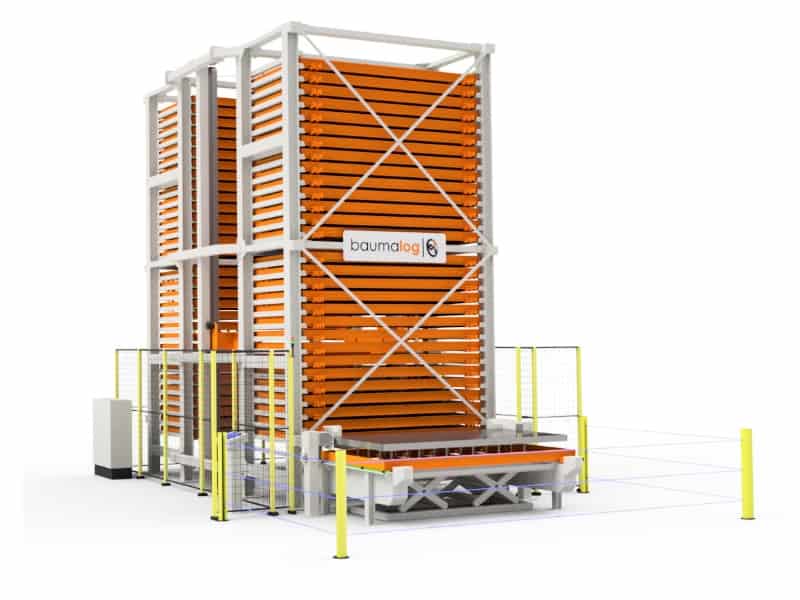

TwinTower automated sheet metal storage system

Advantages

  • storage space saving up to 85%
  • easy and quick access to stored products
  • the goods are stored in an orderly and safe way
  • possibility of integration with other machines of the technological line
  • work management is carried out using an operator panel with dedicated software – Smart WMS Standard
  • increased work safety

Features of the TwinTower®system

  • possible configuration of the system to store sheets in different dimensions – 3 m x 1,5 m, 4 m x 2 m, 6 m x 2 m
  • max. shelf load capacity – 5 000 kg
  • storing itself goods (without pallets)
  • maximal system height up to 20 m allows to fully use the storage space
  • possible outdoor installation
  • modular design allows you to expand the system in the future
  • loading-unloading stations can be located on different levels of the building
  • optional weighing device on the loading-unloading station
  • different types of loading and unloading stations are available, including a duo station with two access levels
  • loading/unloading of the goods can be done by forklift, jib crane or manually
  • intuitive and easy steering software made by Baumalog enables integration with ERP and WMS systems

Technical data

Steel sheet dimension 3 m x 1,5 m 4 m x 2 m 6 m x 2 m
Max. shelf capacity [kg] 3 000 5 000 5 000
Max. number of shelves [pcs.] 203 155 139
Max. height of the system [mm] 20 000 20 000 20 000
Max. capacity of the system [kg] 609 000 775 000 695 000

Selected system configurations

The TwinTower® automated storage system can be equipped with various types of loading and unloading stations, depending on the customer’s needs and the location of other machines in the process line.

The solid station is located in front of the storage column and outside of the system. Transport of sheets to a remote location is carried out with the use of a lifting device or a forklift.

The movable station, that runs along the short side of the shelf, can move to an adjacent room or outside the building to supply or replenish sheets. When the system is not in use, the station is hidden inside the system.

The movable station, that runs along the short side of the shelf, can move to an adjacent room or outside the building to supply or replenish sheets. When the system is not in use, the station is hidden inside the system.
