TransferTower automated storage system

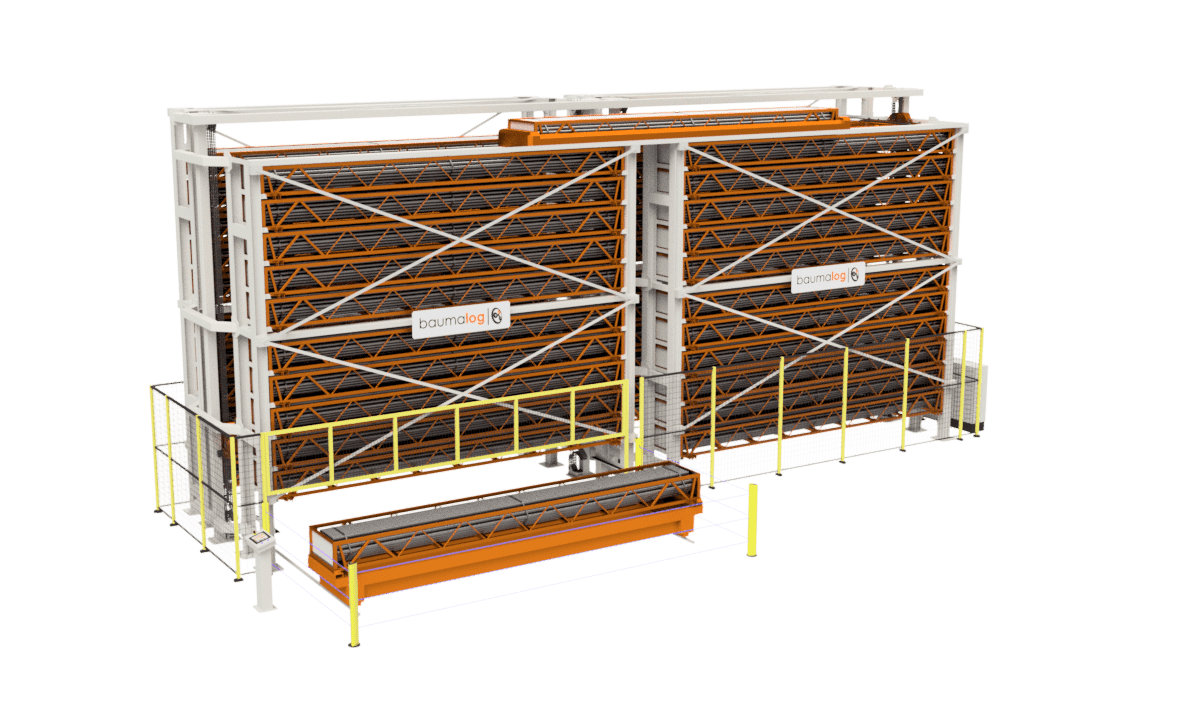

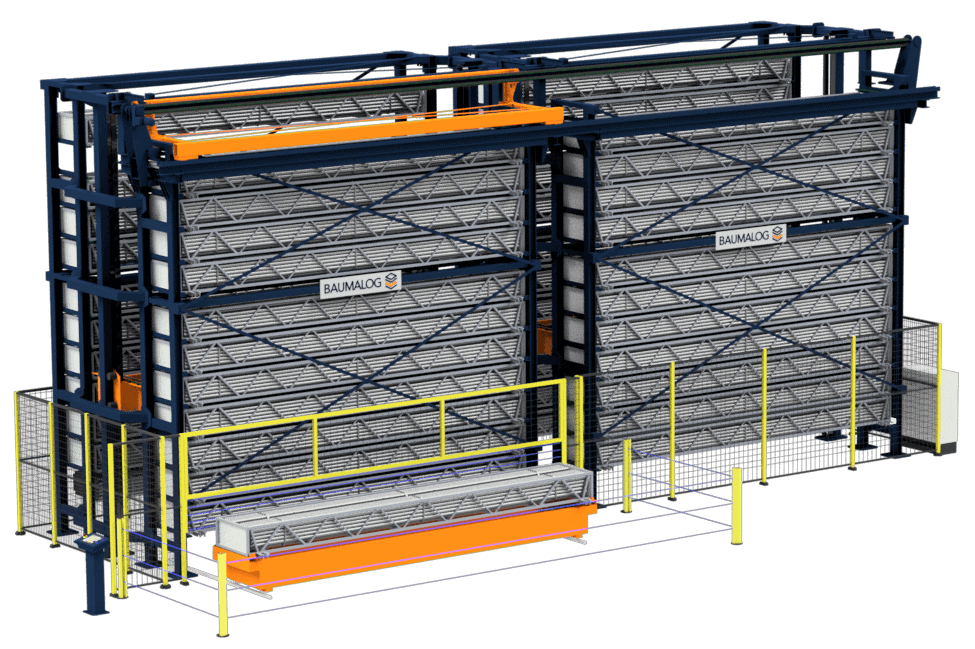

The system consists of 2 to 4 TwinTower® automated storage systems connected with a transfer station that enables the transport of shelves between the columns. The transfer station moves at the top section of the system and the shelves are delivered to it by a moving elevator that works between the storage columns. The connection of the towers with a transfer station enables the access to all goods through all loading-unloading stations. The TwinTower® systems can be placed in series to the longer or shorter side of the shelf. The system allows to store different kind of goods like – profiles, bars, rods, or pipes.

Advantages

  • access to goods placed on multiple storage columns due to each loading-unloading station
  • possibility of simultaneous loading and unloading of goods
  • optimalization of storage space
  • shorter material flow time inside the factory
  • control over warehouse and manufacturing processes possible due to the integration with ERP/WMS systems
  • increased work safety

Features of the TransferTower system

  • max. length of stored goods – 12 m
  • max. shelf load capacity – 5 000 kg
  • max. system height – 20 m
  • possible use of different height of shelves
  • optional separation of goods inside the shelf by using pins
  • possible fullfilling bottom of the shelf
  • 3 types of loading-unloading stations available
  • optional hydraulic lifting device inside loading-unloading station to lift up profiles
  • loading-unloading stations can be located on different levels of the building
  • outdoor installation possible
  • loading and unloading can be executed by forklift, jib crane or manually
  • Baumalog control software (possible integration with ERP and WMS)
